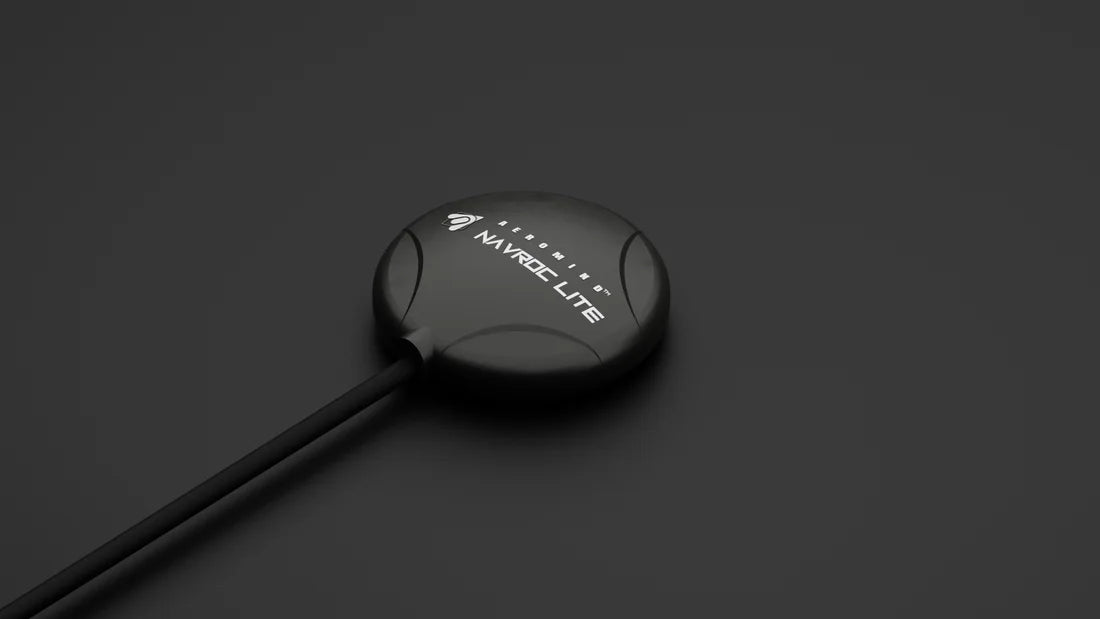

AeroMind™ Navroc Lite

A compact GNSS module with L1 multi-constellation support and a CAN-based interface, dependable positioning and heading for everyday UAV operations.

Key features

• Multi-constellation L1. Tracks Galileo, GPS / QZSS and GLONASS for solid coverage and a quick, stable fix.
• Integrated heading. An onboard 3-axis magnetic sensor provides heading reference without an extra module.
• CAN-based interface. A clean DroneCAN connection keeps wiring simple and the bus deterministic.

Specifications

• Controller: STM32 · Interface: DroneCAN
• Receiver: u-blox M9N high-precision GNSS module
• GNSS bands: E1B/C, E5a, L1C/A, L5
• Constellations: Galileo, GPS / QZSS, GLONASS · Max satellites: 32
• Accuracy: CEP up to 2 m, speeds up to 0.5 m/s
• Power: 5 V from UAV CAN bus · Operating voltage: 4.5-5.5 V
• Operating temperature: -20 °C to +85 °C · Connector: JST-GH
• Dimensions: 53.7 mm diameter x 16.3 mm

Designed, developed and manufactured in India.
