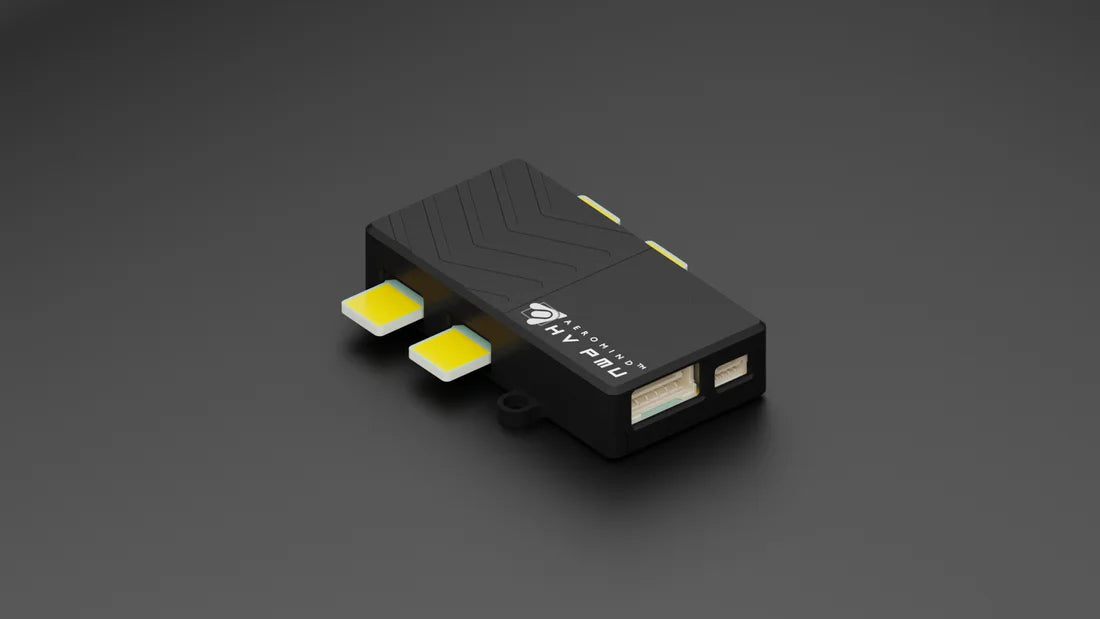

AeroMind™ HV-PMU v1

A DroneCAN digital power-monitoring unit for precise voltage and current monitoring. Supporting 2S-18S input and up to 200 A peak with built-in protections for mission-critical power distribution. (HV-PMU 0422/400)

Key features

• High-voltage capable. Handles 2S-18S (6-75 V) and 160 A continuous / 200 A peak for high-power airframes.
• DroneCAN telemetry. Reports over DroneCAN via a 1.25 mm 4-pin GH connector, with CLIK-Mate power to the flight controller.
• Flexible integration. Exposed PCB pads allow direct wire soldering, and the ergonomic enclosure makes handling safe and simple.

Specifications

• Supply voltage: 2S-18S LiPo (6-75 V)
• Current capacity: 160 A continuous / 200 A peak · Sensing up to 200 A
• Voltage measurement: 0-75 V · Accuracy: ±1% typical
• Communication: DroneCAN
• Connectors: CLIK-Mate (FC power), 1.25 mm GH 4-pin (DroneCAN)
• Operating temperature: -20 °C to +85 °C · Weight: ~45 g with connectors

Designed, developed and manufactured in India.
