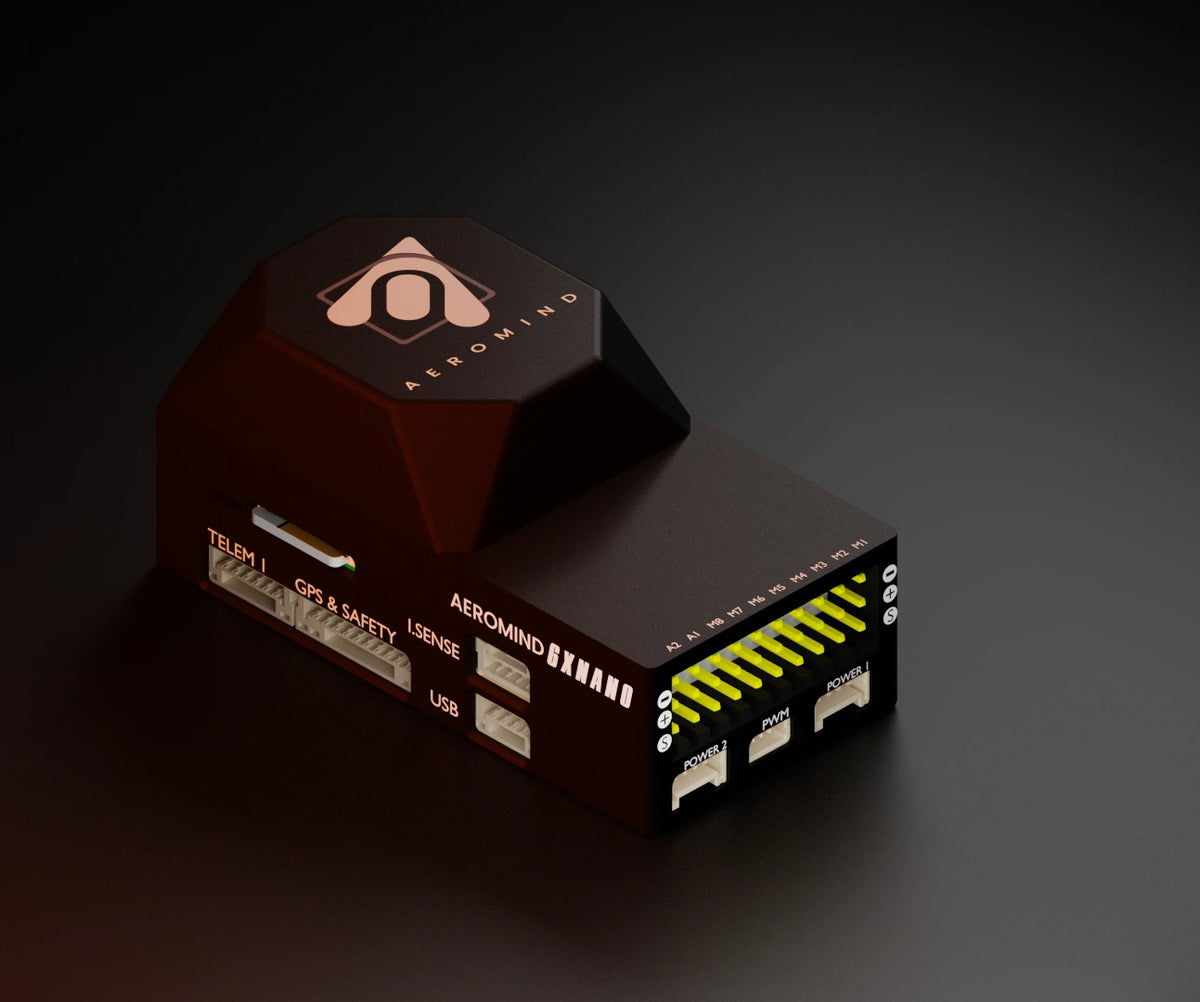

AeroMind™ 6X Nano

The power of the AeroMind 6X in a smaller, shock-isolated form factor, purpose-built for micro ISR and mapping drones that demand long, reliable flights.

Key features

• Micro-silicone dampers. A custom micro-silicone damper system engineered for compact avionics keeps IMU performance stable even in tight form factors.
• Integrated sensing. Supports 3S-12S directly without external power modules, with onboard battery voltage monitoring.
• Ultra-compact and light. Optimised footprint and mass for small UAVs where every millimetre and gram matters.

Specifications

• Hardware standard: FMU v6x · MCU: STM32H753 Arm Cortex-M7
• IMU: 3x 6-axis MEMS, gyro ±2000 dps, accel ±32 g
• Compass: 3-axis MIL-grade magnetometer, ±800 µT, 0.015 µT resolution
• Barometer: 2x MEMS, 30-110 kPa, ~5 cm altitude accuracy
• PWM: 10 (2.54 mm 3-pin DuPont) + 2 (JST-GH)
• Connectivity: 3x UART · 2x CAN · 1x I²C · 1x I²C current sense · 1x USB · 1x S.Bus Out
• Input voltage: 12-50 V (3S-12S) · Operating temperature: -20 °C to +85 °C
• Weight: 60 g · Dimensions: 62 x 31 x 28.9 mm
• Firmware: ArduPilot

Contact for pricing. Designed, developed and manufactured in India.
